General
Manufacturer QNAP
Model QNAP TS-1685-D1521-8G
Manufacturer Part No TS-1685-D1521-8G

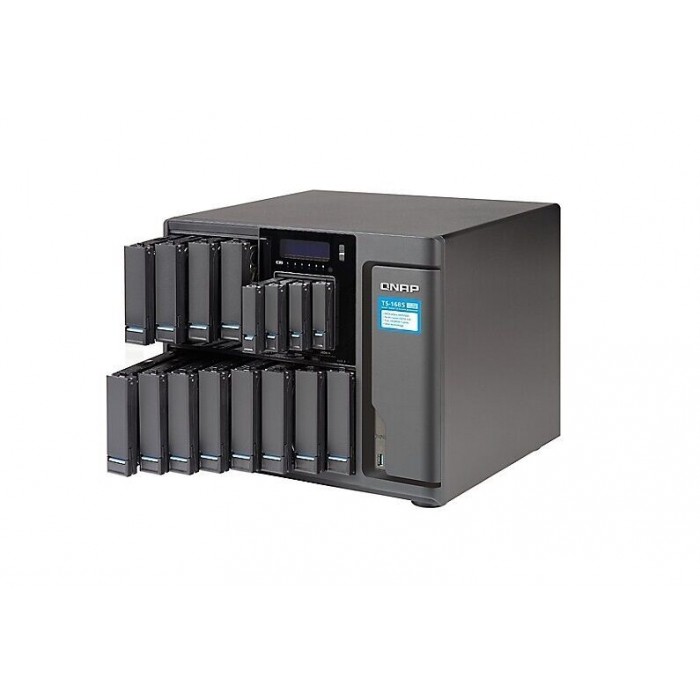

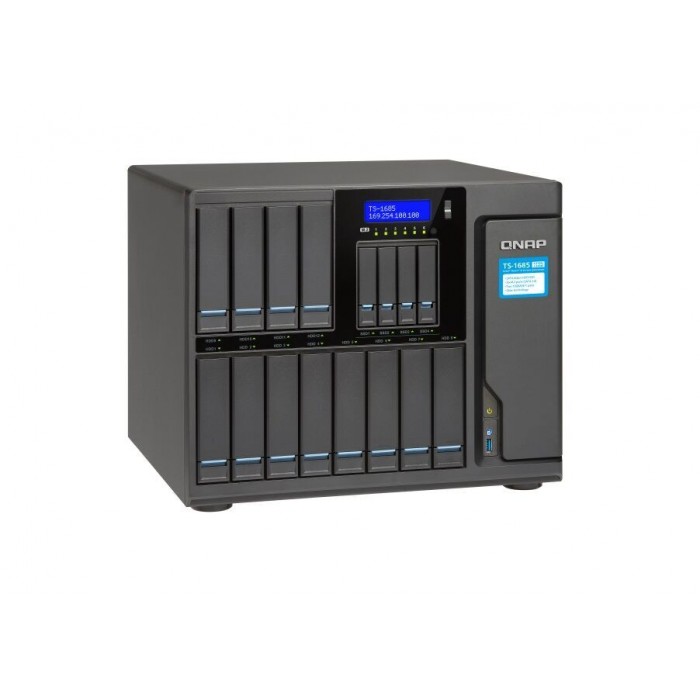

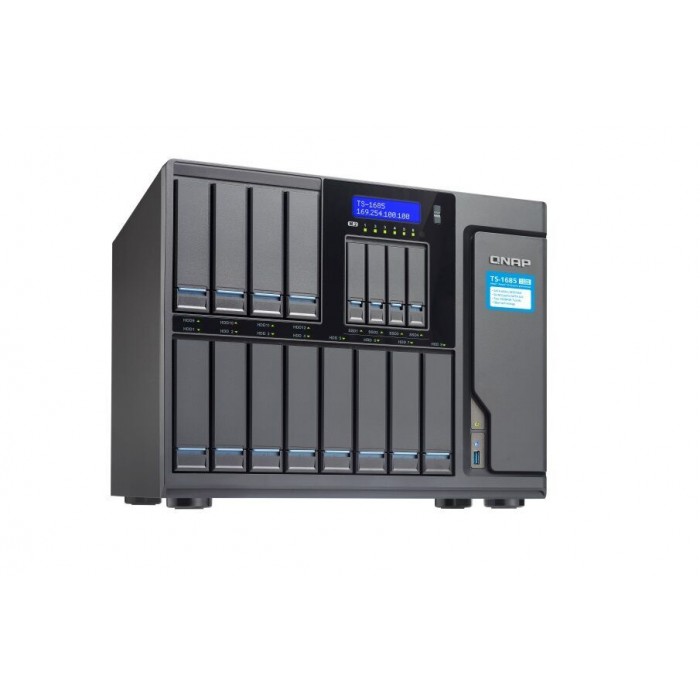

QNAP TS-1685-D1521-8G High-capacity 16-bay Xeon D Super NAS


  • NAS and iSCSI-SAN unified storage solution
  • Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots
  • Qtier technology and SSD caching enable 24/7 optimized storage efficiency
  • 10GbE/40GbE expandability, highly-efficient storage solution for virtualization and intensive data transmission
  • Supports virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery
  • Q’center for centrally managing all of your NAS devices, and QRM+ as a centralized management solution for networked computing devices
  • Qfiling enabling automated file organization, Qsirch full-text search engine, and QmailAgent for centralized email management
  • Scalable up to 56 drive capacity with QNAP expansion enclosures
  • Fulfilled by Terrabyt
  •  Condition: New

QNAP TS-1685-D1521-8G High-capacity 16-bay Xeon D Super NAS

Description
CPU
  • CPU:Intel® Xeon® Processor D-1521, 4-core 2.4 GHz
System Memory
  • 8GB non-ECC RAM (8GB UDIMM x 1)
Maximum Memory
  • DDR4 128GB (with DDR4 32GB RDIMM x 4)
Memory Slot
  • 4
Flash Memory
  • 512MB DOM
Drive Bay
  • 12 x 2.5"/3.5" HDD/SSD slot
  • 4 x 2.5" SSD slot, max 9.5mm drive height
Drive Compatibility
  • SATA 6Gb/s HDD and SSD
M.2 SSD Slot
  • 6 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD
  • Note:
  • 1. The M.2 SSD is not included as standard.
  • 2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
Gigabit Ethernet Port
  • 2 x 10GBASE-T ports, 4 x Gigabit ports
  • USB Port
  • Front: 1 x USB 3.0 port; Rear: 2 x USB 3.0 port
Audio
  • Output: 1 x built-in speaker, 1 x 3.5mm Line-out jack
LED Indicators
  • System status, 2.5" SSD, M.2 SSD, 3.5" HDD
Buttons System:
  • Power button, Reset button, USB one-touch-backup button
  • Form Factor
  • Desktop
Dimensions (H x W x D)
  • 303.84 x 369.89 x 319.8 mm
  • 11.96 x 14.56 x 12.59 inch
Weight
  • Net weight (NAS only):
  • 13.39 kg/ 29.52 lb
Sound Level
  • Sound Level (dB) Sound pressure (LpAm) (bystander position): 22.5 dB
  • (with 12 x Seagate ST2000VN000 hard drive and 4 x SSD installed)
  • Power Consumption (W)
  • Sleep mode: 61.36 W
  • In Operation: 127 W
Operating Temperature & Relative Humidity
  • 0 ~ 40˚C ( 32˚F ~ 104˚F ),5~95% non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit
  • 100-240V~, 3-1.5A, 60-50Hz, 250W PSU
PCIe Slot
  • Number: 3
  • Slot 1: PCIe Gen.3 x8
  • Slot 2: PCIe Gen.2 x4
  • Slot 3: PCIe Gen.3 x8
Fan
  • System: 3 x 9.2cm fan (12V DC)
  • CPU: 2 x 9cm fan




Tags: QNAP TS-1685-D1521-8G Price Dubai QNAP TS-1685-D1521-8G Supplier Dubai QNAP TS-1685-D1521-8G Sale Dubai QNAP TS-1685-D1521-8G Features Dubai QNAP IT Products Dubai QNAP IT Supplies Dubai QNAP IT Store Dubai QNAP Distributor Dubai QNAP Shop Dubai QNAP Store Dubai

show more
General
Manufacturer QNAP
Model QNAP TS-1685-D1521-8G
Manufacturer Part No TS-1685-D1521-8G
